How does a V.I.P. hydraulic levelingsystem work

Here is a clear explanation of how a V.I.P hydraulic leveling system works, with descriptions for accompanying images to illustrate each step and function.

Step 1: Overview of the V.I.P Hydraulic Leveling System

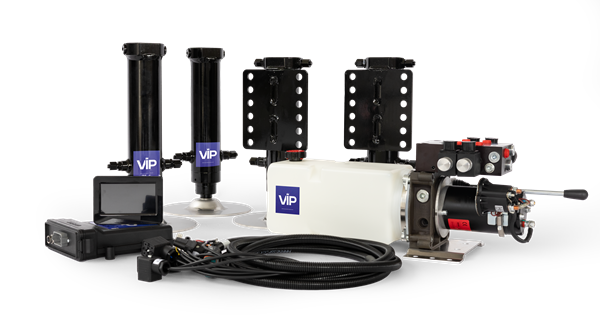

The V.I.P hydraulic leveling system enables motorhomes and vehicles to level quickly, automatically, and effortlessly, regardless of the terrain. The system consists of four powerful hydraulic cylinders, a central pump, and a control panel that allows the user to operate the system easily.

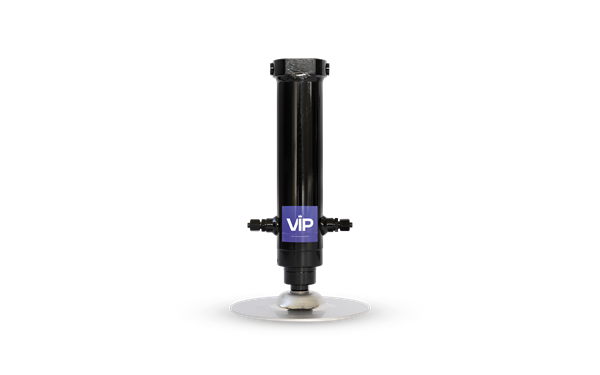

Step 2: Installation of the Hydraulic Cylinders

The four hydraulic cylinders are attached to the vehicle's chassis. The cylinders are strategically placed to evenly support the weight and provide maximum stability when the motorhome is raised.

Most mounting holes are already standard in the chassis.

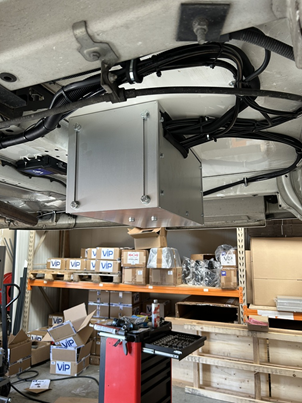

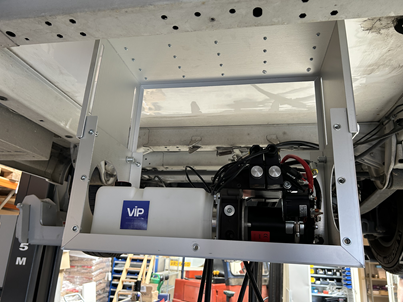

Step 3: Placement of the Hydraulic Pump

The hydraulic pump is the heart of the system, pumping hydraulic fluid to the cylinders. In the V.I.P system, the pump is typically mounted externally, saving space inside the vehicle and simplifying installation. This pump provides the power needed to lift and level the motorhome.

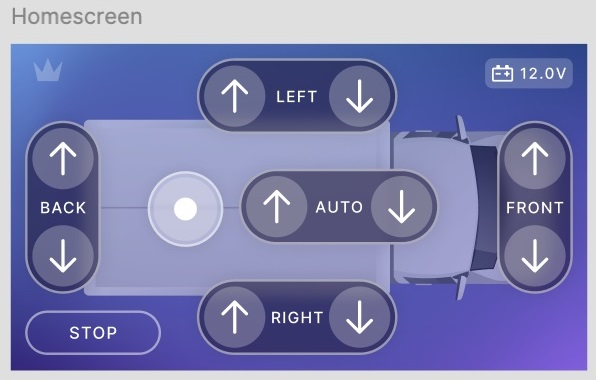

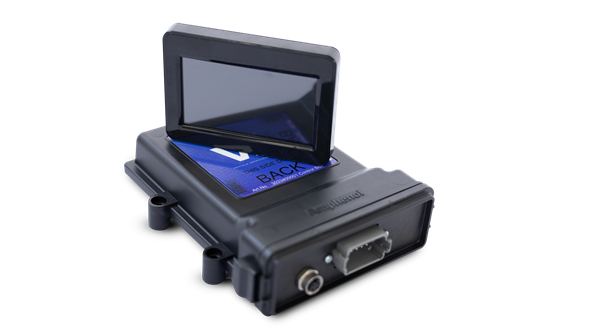

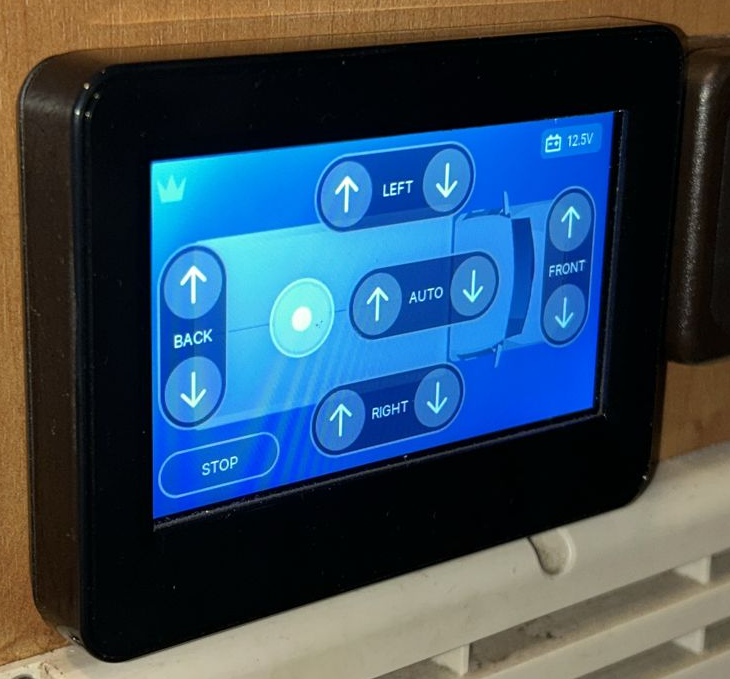

Step 4: Control Panel and Functionality

The control panel is located within easy reach in the cabin and offers various functions, including:

• Automatic Leveling: The system independently calculates how to lift the vehicle to achieve a perfectly level position.

• Manual Operation: Allows the user to individually raise or lower each wheel.

• Safety Feature: The system is secured to prevent accidental activation while driving.

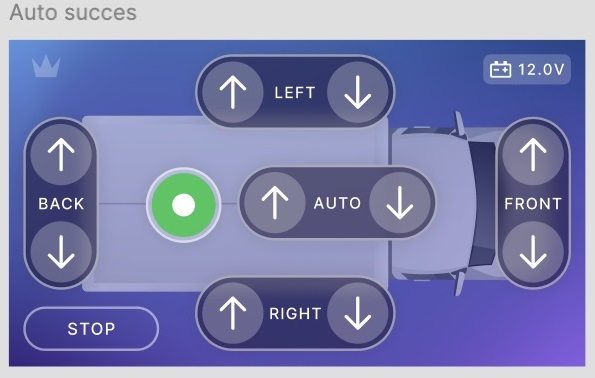

Step 5: In Action - Automatic Leveling

When the user presses the automatic button, the four cylinders slowly extend until the sensors indicate that the vehicle is completely level. The system accounts for slopes and uneven terrain, ensuring the motorhome is always perfectly level.

Step 6: Manual Adjustment for Specific Situations

In some cases, manual adjustment is preferred, such as on very uneven terrain or when only one side needs to be slightly raised. Using the control panel, the user can individually adjust the cylinders to position the vehicle as desired.

Step 7: Safely Locked During Travel

When the system is turned off, it automatically retracts the cylinders completely. This locks the system, ensuring there is no risk of unintended deployment while driving.

Step 8: Maintenance and Durability

The V.I.P system is designed for long-term use and requires minimal maintenance. All components are robustly built and resistant to weather conditions, making the system reliable for frequent use.

Conclusion

The V.I.P hydraulic leveling system provides motorhomes and vehicles with stability, comfort, and safety with minimal effort.

With just the press of a button, you’re ready to enjoy a comfortable and level stay, wherever you are!
